Bison
Lathe Center - Bison 7-562-003
MFR# 7-562-003
$184.03List $231.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

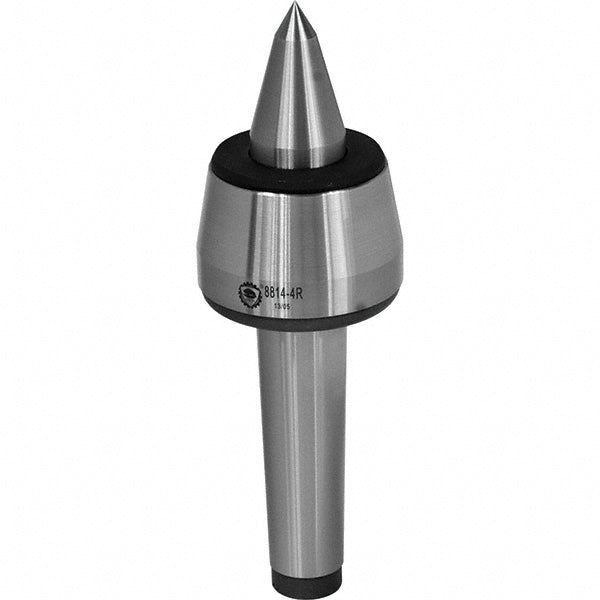

The Bison 7-562-003 is a steel lathe center.
Specifications
Accuracy0.000300
Bearing typeTriple
Carbide tipped pointNo
Head diameter (mm)34.00
Included angle60
MaterialSteel
Maximum rpm7000
Maximum workpiece weight kg340.00
Maximum workpiece weight lb1000.00
Point diameter (mm)15.00
Point length (mm)30.00
Point styleExtended
Point to gauge line (mm)74.00
Radial load748lb
Shank typeMorse Taper
Taper length3.1890
Taper sizeMT3
Thrust load dan630.00
Thrust load lb1416.00
Tip diameter in9
