Bison

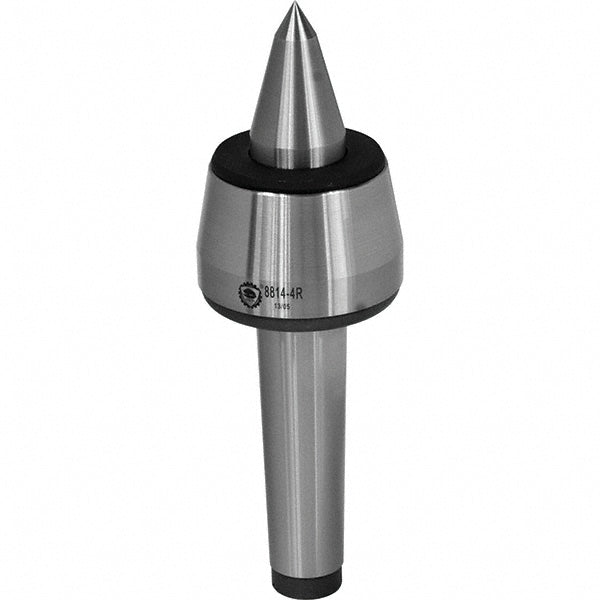

Lathe Center - Bison 7-562-005
MFR# 7-562-005
$364.07List $457.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-562-005 is a steel lathe center.
Specifications
Accuracy0.000400
Bearing typeTriple
Carbide tipped pointNo
Head diameter (mm)58.00
Included angle60
MaterialSteel
Maximum rpm4300
Maximum workpiece weight kg1400.00
Maximum workpiece weight lb3080.00
Point diameter (mm)30.00
Point length (mm)49.00
Point styleExtended
Point to gauge line (mm)119.00
Radial load3080lb
Shank typeMorse Taper
Taper length5.0984
Taper sizeMT5
Thrust load dan1400.00
Thrust load lb3147.00
Tip diameter (mm)14.00
