Bison

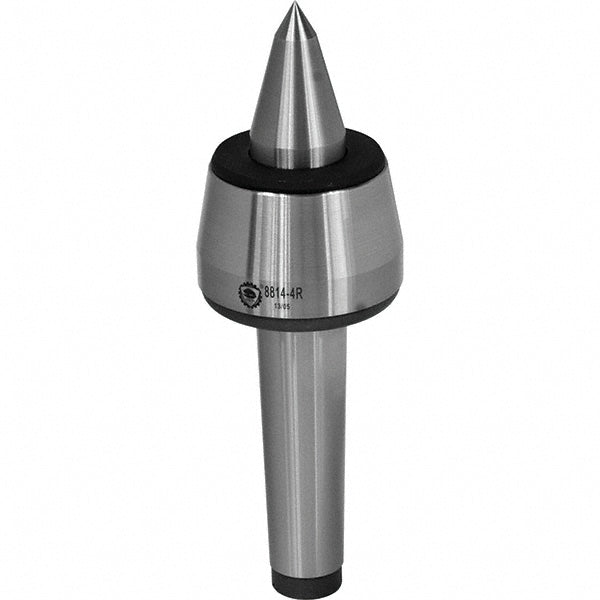

Lathe Center - Bison 7-563-003
MFR# 7-563-003
$175.26List $220.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-563-003 is a steel lathe center.
Specifications
Accuracy0.000200
Bearing typeTriple
Carbide tipped pointNo
Head diameter (mm)34.00
Included angle60
MaterialSteel
Maximum rpm7000
Maximum workpiece weight kg400.00
Maximum workpiece weight lb310.00
Point diameter (mm)15.00
Point length (mm)18.00
Point styleStandard
Point to gauge line (mm)62.00
Radial load880lb
Shank typeMorse Taper
Taper length3.1890
Taper sizeMT3
Thrust load dan630.00
Thrust load lb1416.00
Tip diameter (mm)15.00
