Bison

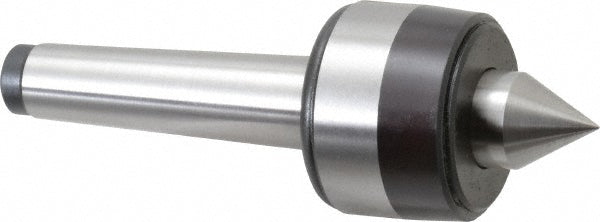

Lathe Center - Bison 7-565-002
MFR# 7-565-002
$109.15List $137.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-565-002 is a steel lathe center.
Specifications
Accuracy0.000300
Bearing typeTriple
Carbide tipped pointNo
FeaturesHD Revolving Centers with 60 Point
Head diameter1.5700
Included angle60
Load capacity460.00lb
MaterialSteel
Maximum rpm5000
Maximum workpiece weight lb960.00
Overall length4.7400
Point diameter0.7000
Point length0.8700
Point styleStandard
Point to gauge line2.2200
Shank typeTaper
Taper sizeMT2
Tip length0.8700
Total indicated runout accuracy0.00030
