Bison
Lathe Center - Bison 7-565-005
MFR# 7-565-005
$356.10List $447.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

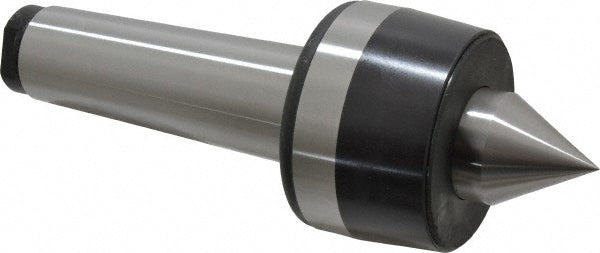

The Bison 7-565-005 is a steel lathe center.
Specifications
Accuracy0.000400
Bearing typeTriple
Carbide tipped pointNo
FeaturesHD Revolving Centers with 60 Point
Head diameter3.3500
Included angle60
Load capacity4400.00lb
MaterialSteel
Maximum rpm2500
Maximum workpiece weight lb1800.00
Overall length9.3300
Point diameter1.6100
Point length1.7700
Point styleStandard
Point to gauge line4.2300
Shank typeTaper
Taper sizeMT5
Tip length1.7700
Total indicated runout accuracy0.00040
