Bison
Lathe Center - Bison 7-565-103
MFR# 7-565-103
$186.42List $234.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

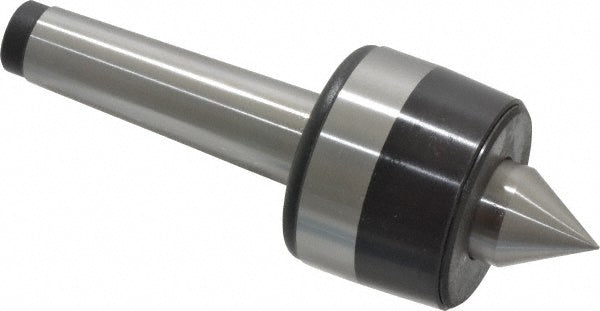

The Bison 7-565-103 is a steel lathe center.
Specifications
Accuracy0.000100
Bearing typeTriple
Carbide tipped pointNo
FeaturesHD Revolving Centers with 60 Point
Head diameter2.2000
Included angle60
Load capacity925.00lb
MaterialSteel
Maximum rpm4000
Maximum workpiece weight lb1905.00
Overall length6.1400
Point diameter0.9800
Point length1.1200
Point styleStandard
Point to gauge line2.9500
Shank typeTaper
Taper sizeMT3
Tip length1.1200
Total indicated runout accuracy0.00010
