Bison
Lathe Center - Bison 7-565-105
MFR# Bison-7-565-105
$356.10List $447.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

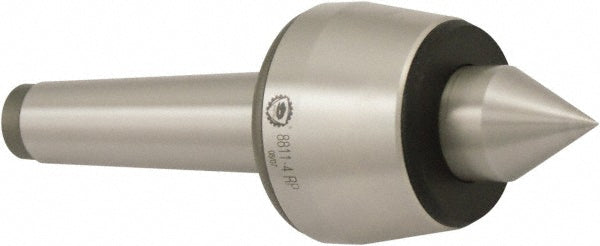

The Bison 7-565-105 is a steel lathe center.
Specifications
Accuracy0.000100
FeaturesHD Revolving Centers with 60 Point
Head diameter3.3460
Included angle60
Load capacity4180.00lb
MaterialSteel
Maximum rpm2500
Maximum workpiece weight kg1900.00
Maximum workpiece weight lb4190.00
Point diameter1.5740
Point length1.7300
Point styleStandard
Shank typeMorse Taper
Taper sizeMT5
Tip diameter1.5740
Total indicated runout accuracy0.00020
