Bison

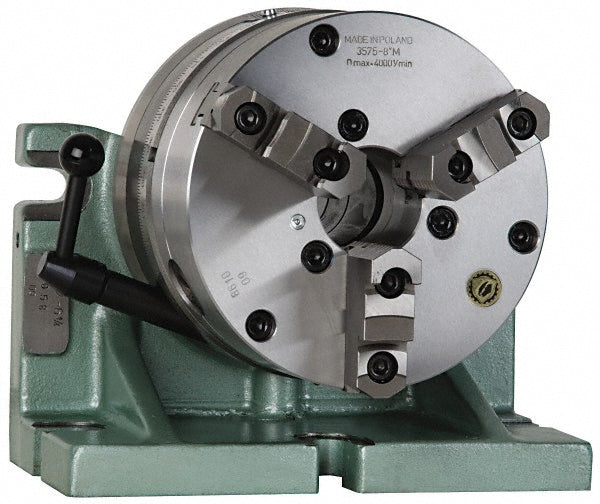

Collet Fixture - Bison 7-609-006
MFR# 7-609-006
$4,440.53List $5,574.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-609-006 is a collet fixture.
Specifications
Centerline height4.9200
Chuck diameter in6
Chuck through hole size1.6530
Concentricity of chuck0.0015
Face plate diameter6.3000
Includes chuckYes
Indexing accuracy2 min
Number of indexing increments360
Overall height8.6600
Overall length11.8500
Overall width9.6500
Parallelism over face0.0008
Spacer through hole size0.8660
Spacer typeSuper
Squareness base to chuck0.0008
