Bison

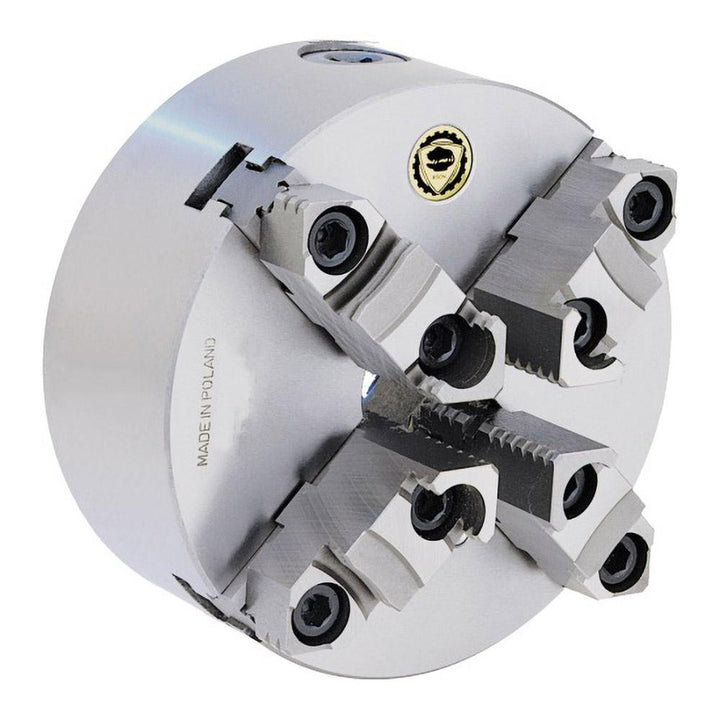

4-Jaw Lathe Chuck - Bison 7-840-1200
MFR# 7-840-1200
$2,240.18List $2,812.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-840-1200 is a cast iron lathe chuck.
Specifications
AdjustableNo
Axial runout0.0012
Body length94.00
Body materialCast Iron
Chuck diameter in12-1/2
Chuck typeSelf-Centering
Contents(2) Hex Keys; Chuck Wrench; Eye Bolts (Chuck Size 15-3/4 in & Larger); Semi-Steel Body; Set of Hard Master Jaws; Set of Hard Top Reversible Jaws; Set of Mounting Bolts
Jaw typeMaster; Top
MaterialCast Iron
Maximum jaw capacity in10.4300
Maximum rpm1500
Minimum jaw capacity in0.3940
Mount typePlain Back
Number of jaws4
Radial runout0.0031
Reversible jawsReversible
Through hole diameter4.0551
