Carmex

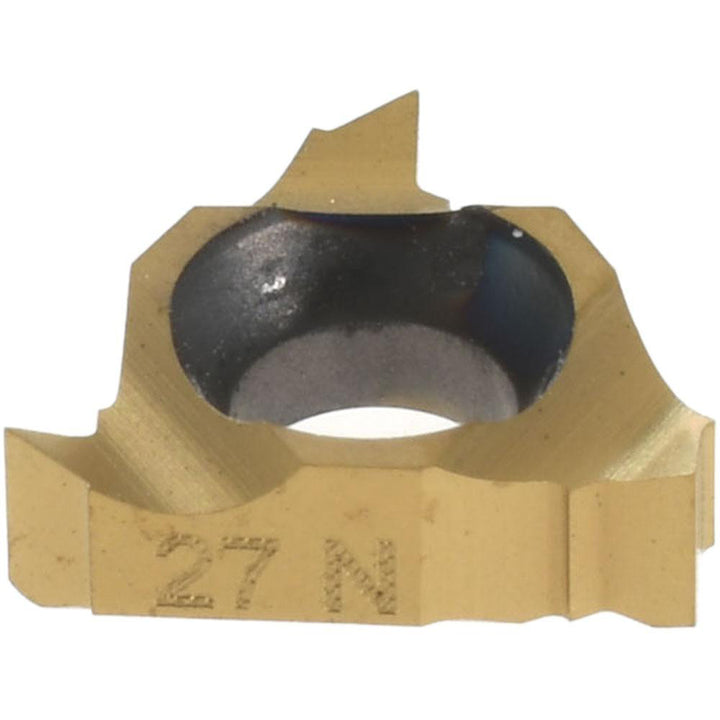

06 IL 27 NPT Carbide Insert, Grade BXC, TiN - Carmex 06IL27NPTBXC
MFR# 06IL27NPTBXCISO/ANSI# 06 IL 27 NPTCat# 06 IL 27 NPTSeries 06IL
$26.04List $33.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
GradeBXC
MaterialCarbide
CoatingTiN
Description
The Carmex 06IL27NPTBXC is a 06 IL 27 NPT carbide indexable insert, grade BXC, TiN coated. Suited for stainless steel.
Specifications
Coating finishTiN
Coating processPVD
Cutting edge to theoretical edge length0.0200
Face of insert to tip centerline0.0200
Included angle60
Inscribed circle in5/32
Insert handLeft Hand
Insert materialCarbide
Insert size code06
Insert styleIL
Iso code06 IL 27 NPT
Manufacturers catalog number06 IL 27 NPT
Manufacturer gradeBXC
Number of teeth per side1
Primary workpiece materialStainless Steel
Thickness0.0730
Threads per inch27
Thread standardNPT
Thread typeInternal
