Carmex

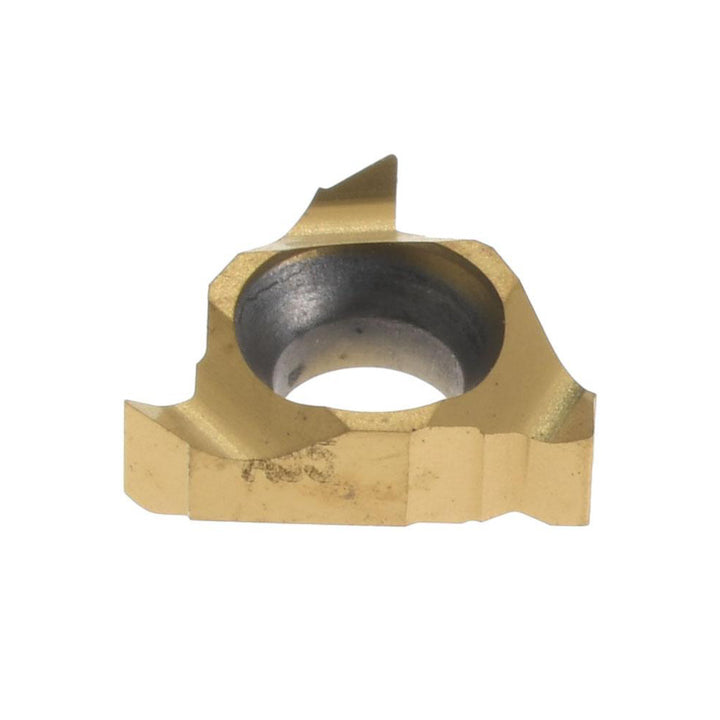

06 IL A55 Carbide Insert, Grade BXC, TiN - Carmex 06ILA55BXC
MFR# 06ILA55BXCISO/ANSI# 06 IL A55Cat# 06 IL A55Series 06IL
$24.81List $31.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
GradeBXC
MaterialCarbide
CoatingTiN
Description
The Carmex 06ILA55BXC is a 06 IL A55 carbide indexable insert, grade BXC, TiN coated. Suited for stainless steel.
Specifications
Coating finishTiN
Coating processPVD
Cutting edge to theoretical edge length0.0200
Face of insert to tip centerline0.0200
Included angle55
Inscribed circle in5/32
Insert handLeft Hand
Insert materialCarbide
Insert size code06
Insert styleIL
Iso code06 IL A55
Manufacturers catalog number06 IL A55
Manufacturer gradeBXC
Number of teeth per side1
Pitch (mm)0.50-1.25
Primary workpiece materialStainless Steel
Thickness0.0730
Threads per inch48-20
Thread standardPartial Profile 55 Degree
Thread typeInternal
