Carmex

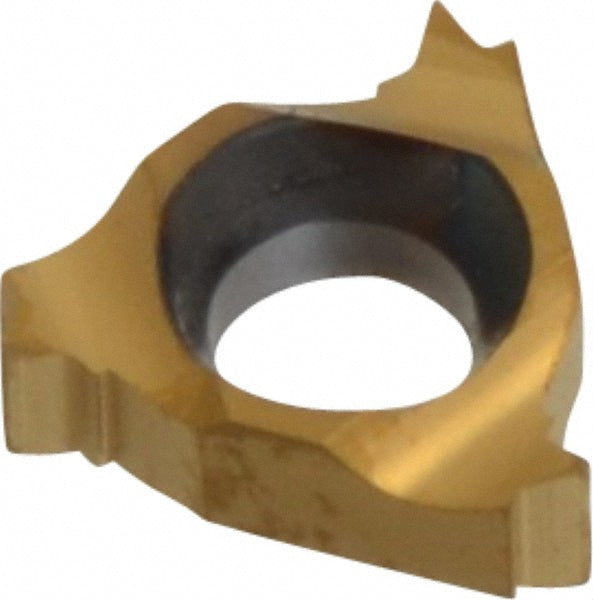

5/32" IC Solid Carbide Insert, Grade BXC, Coated - Carmex 06IR28UNBXC
MFR# 06IR28UNBXC
$18.85List $24.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
GradeBXC
MaterialSolid Carbide
CoatingCoated
Description
The Carmex 06IR28UNBXC is a solid carbide indexable insert, grade BXC, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Cutting edge to theoretical edge length0.0300
Face of insert to tip centerline0.0200
Included angle60
Inscribed circle in5/32
Insert handRight Hand
Insert materialSolid Carbide
Insert size code06
Insert style06IR
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeBXC
Msc manufacturer number06 IR/L 28UN
Primary workpiece materialUniversal
StandardsCE
Thickness0.0730
Threads per inch28
Thread standardUN
Thread typeInternal
