Carmex

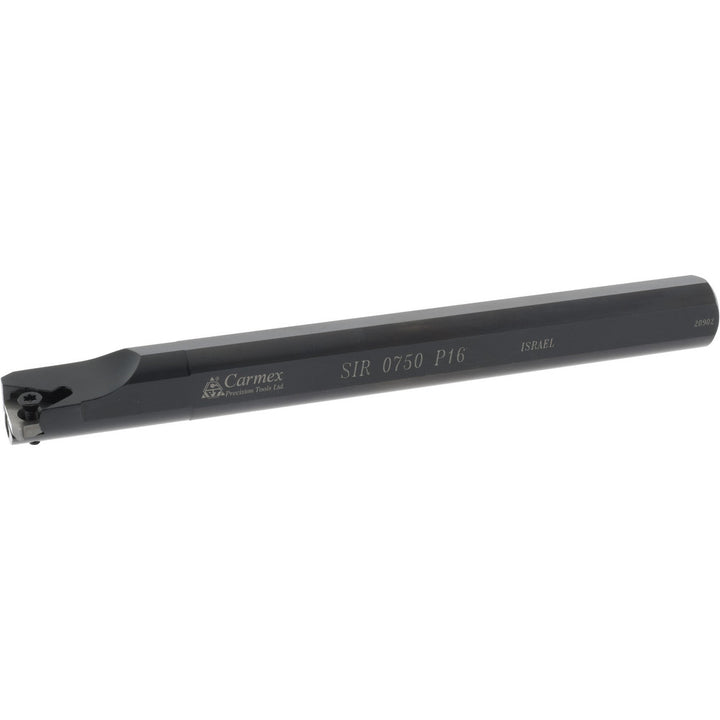

Indexable Threading Toolholders - Carmex 075-3INT.HOLD
MFR# 075-3INT.HOLDSeries SIR
$138.42List $177.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Carmex 075-3INT.HOLD indexable threading toolholders. Series SIR.
Specifications
Back of bar to cutting edge0.5100
Center to cutting edge0.5100
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Distance across flats0.6690
F in0.5100
Hand of holderRight Hand
Insert compatibility16IR
Insert holding methodScrew
Insert inscribed circle in3/8
Minimum bore diameter0.9000
Multi use toolNo
Neck diameter0.7500
Overall length in7
Shank height in3/4
Shank width diameter in3/4
StyleSIR 0750 P16
Thread typeInternal
Toolholder styleSI
