Carmex

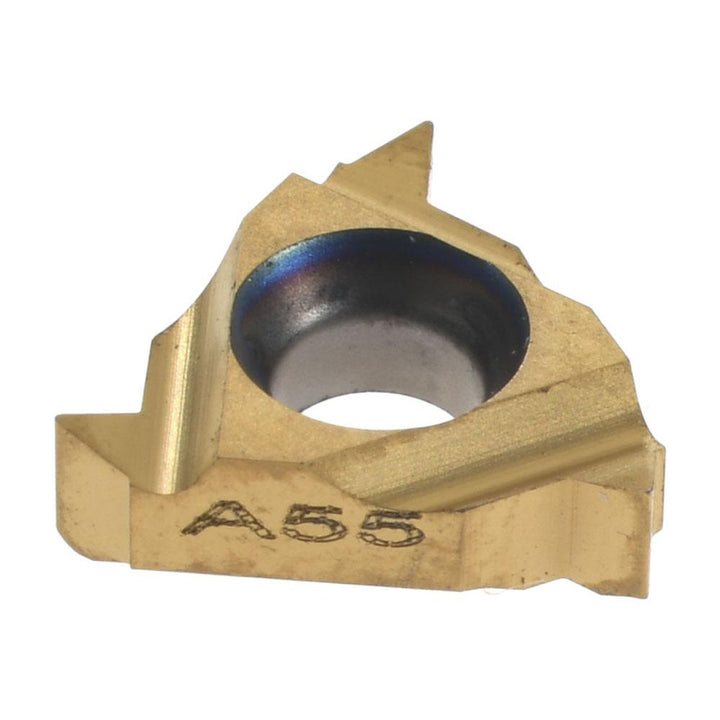

08 IL A55 Carbide Insert, Grade BXC, TiN - Carmex 08ILA55BXC
MFR# 08ILA55BXCISO/ANSI# 08 IL A55Cat# 08 IL A55Series 08IL
$24.81List $31.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
GradeBXC
MaterialCarbide
CoatingTiN
Description
The Carmex 08ILA55BXC is a 08 IL A55 carbide indexable insert, grade BXC, TiN coated. Suited for stainless steel.
Specifications
Coating finishTiN
Coating processPVD
Cutting edge to theoretical edge length0.0200
Face of insert to tip centerline0.0300
Included angle55
Inscribed circle in3/16
Insert handLeft Hand
Insert materialCarbide
Insert size code08
Insert styleIL
Iso code08 IL A55
Manufacturers catalog number08 IL A55
Manufacturer gradeBXC
Number of teeth per side1
Pitch (mm)0.50-1.50
Primary workpiece materialStainless Steel
Thickness0.0870
Threads per inch48-16
Thread standardPartial Profile 55 Degree
Thread typeInternal
