Carmex

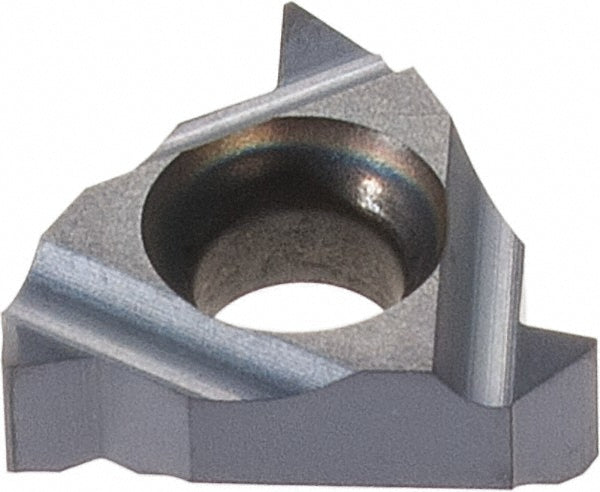

3/16" IC Solid Carbide Insert, Grade BMA, Coated - Carmex 08IR18NPTFBMA
MFR# 08IR18NPTFBMA
$19.93List $25.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
GradeBMA
MaterialSolid Carbide
CoatingCoated
Description
The Carmex 08IR18NPTFBMA is a solid carbide indexable insert, grade BMA, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Included angle60
Inscribed circle in3/16
Insert handRight Hand
Insert materialSolid Carbide
Insert size code08
Insert style08IR
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeBMA
Primary workpiece materialUniversal
StandardsCE
Threads per inch18
Thread standardNPT
Thread typeInternal
