Carmex

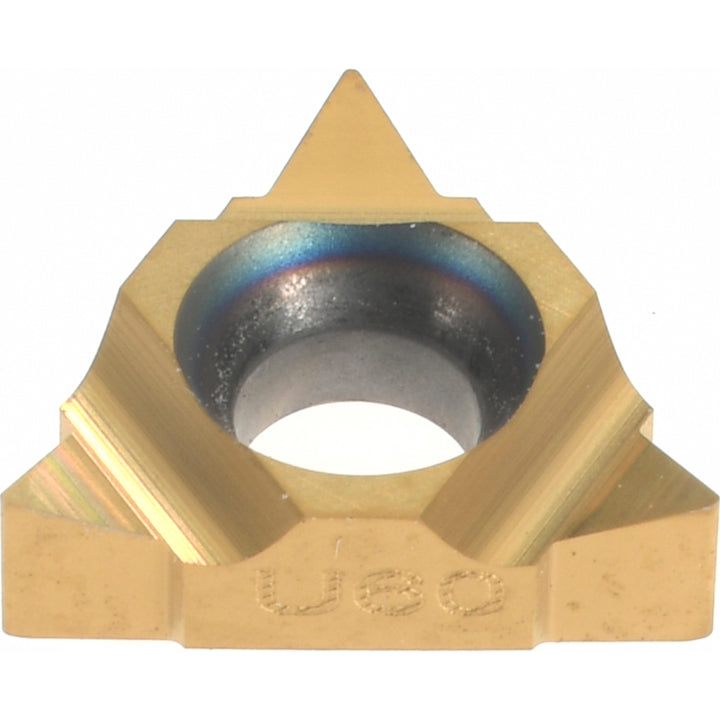

3/16" IC Solid Carbide Insert, Grade BXC, Coated - Carmex 08IRU60BXC
MFR# 08IRU60BXC
$27.70List $35.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
GradeBXC
MaterialSolid Carbide
CoatingCoated
Description
The Carmex 08IRU60BXC is a solid carbide indexable insert, grade BXC, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Cutting edge to theoretical edge length0.0300
Face of insert to tip centerline0.1600
Included angle60
Inscribed circle in3/16
Insert handLeft Hand; Right Hand
Insert materialSolid Carbide
Insert size code08
Insert style08UIR/L
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeBXC
Msc manufacturer number08U IR/L U60
Pitch (mm)1.75 to 2.00
Primary workpiece materialUniversal
StandardsCE
Thickness0.0870
Threads per inch14-11
Thread typeInternal
