Carmex

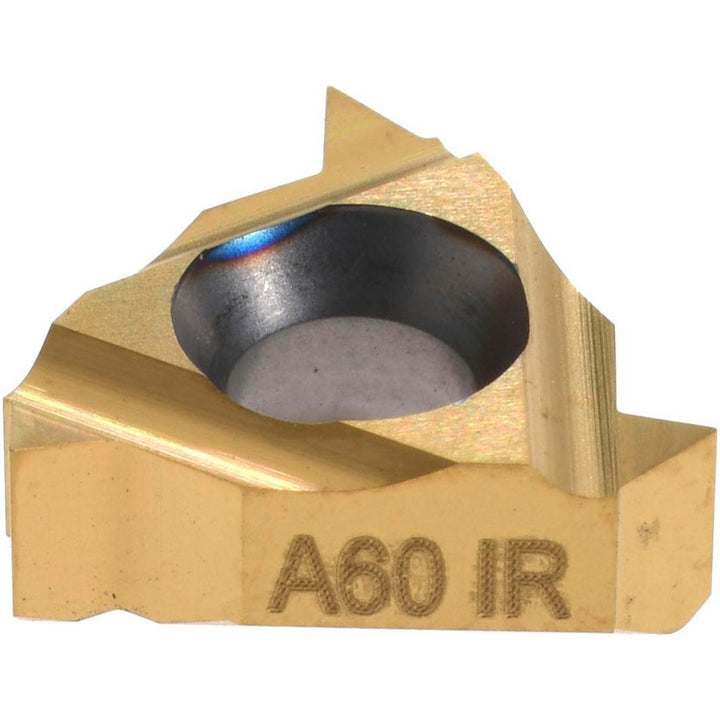

1/4" IC Carbide Insert, Grade P25C, TiN - Carmex 1/4INRHA60P25C
MFR# 1/4INRHA60P25C
$21.54List $27.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeP25C
MaterialCarbide
CoatingTiN
Description
The Carmex 1/4INRHA60P25C is a carbide indexable insert, grade P25C, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialCarbide
Insert size code11
Insert style11IR
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeP25C
Pitch (mm)0.50-1.50
Primary workpiece materialUniversal
StandardsCE
Thickness0.1270
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeInternal
