Carmex

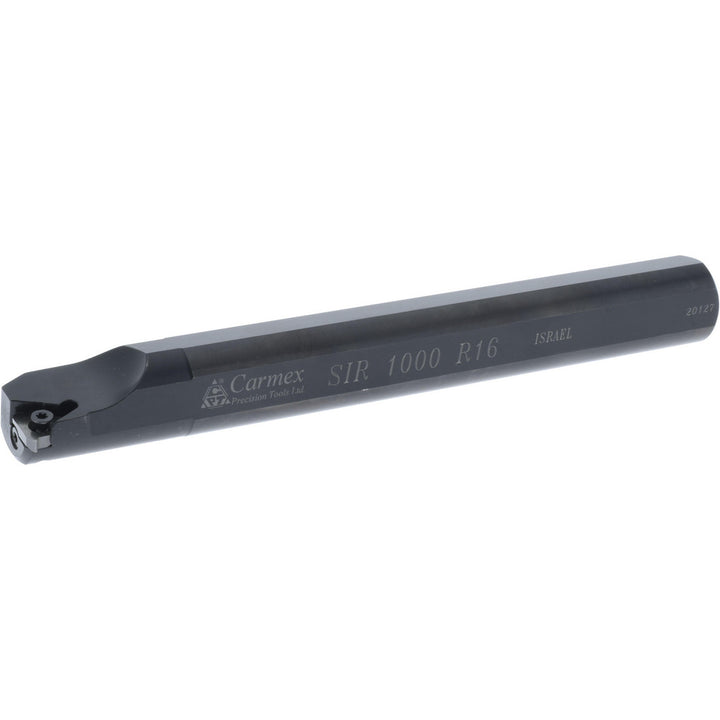

Indexable Threading Toolholders - Carmex 100-3IN.RHHOL
MFR# 100-3IN.RHHOLSeries SIR
$181.41List $232.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Carmex 100-3IN.RHHOL indexable threading toolholders. Series SIR.
Specifications
Back of bar to cutting edge0.6500
Center to cutting edge0.6500
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Distance across flats0.9050
F in0.6500
Hand of holderRight Hand
Insert compatibility16IR
Insert holding methodScrew
Insert inscribed circle in3/8
Minimum bore diameter1.1600
Multi use toolNo
Neck diameter1.0000
Overall length in8
Shank width diameter in1
StyleSIR 1000 R16
Thread typeInternal
Toolholder styleSI
