Carmex

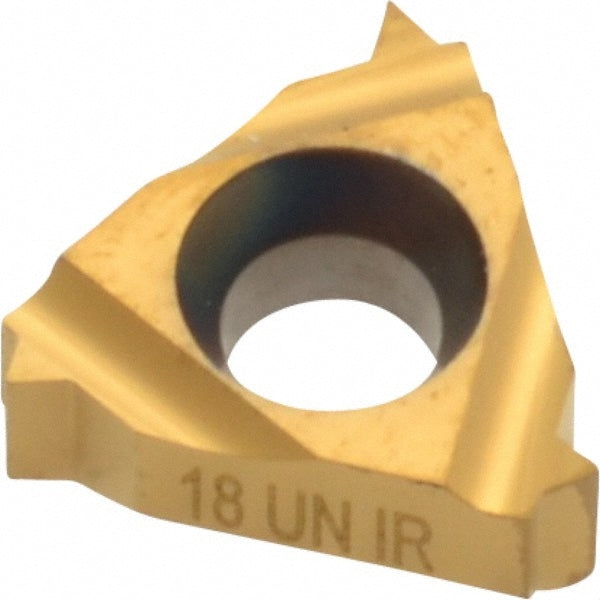

1/4" IC Solid Carbide Insert, Grade P25C, Coated - Carmex 11IR18UNP25
MFR# 11IR18UNP25
$23.61List $30.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeP25C
MaterialSolid Carbide
CoatingCoated
Description
The Carmex 11IR18UNP25 is a solid carbide indexable insert, grade P25C, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code11
Insert style11IR
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeP25C
Material gradeC5
Primary workpiece materialUniversal
StandardsCE
Thickness0.1270
Threads per inch18
Thread standardUN
Thread typeInternal
