Carmex

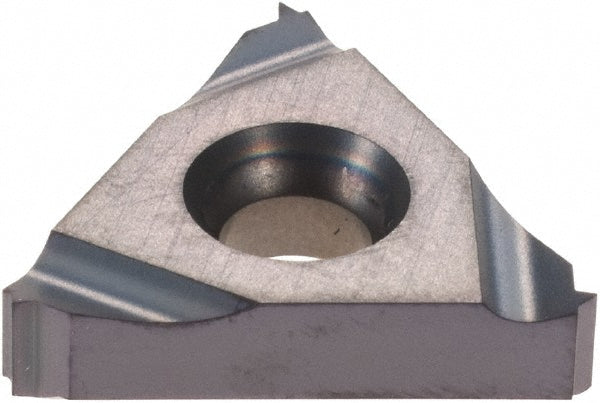

16 IR 28 UN Carbide Insert, Grade BMA, TiAlN - Carmex 16IR28UNBMA
MFR# 16IR28UNBMAISO/ANSI# 16 IR 28 UNCat# 16 IR 28 UNSeries 16IR
$23.53List $29.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeBMA
MaterialCarbide
CoatingTiAlN
Description
The Carmex 16IR28UNBMA is a 16 IR 28 UN carbide indexable insert, grade BMA, TiAlN coated. Suited for stainless steel.
Specifications
Coating finishTiAlN
Coating processPVD
Cutting edge to theoretical edge length0.0200
Face of insert to tip centerline0.0200
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16IR
Iso code16 IR 28 UN
Manufacturers catalog number16 IR 28 UN
Manufacturer gradeBMA
Number of teeth per side1
Primary workpiece materialStainless Steel
Threads per inch28
Thread standardUN
Thread typeInternal
