Carmex

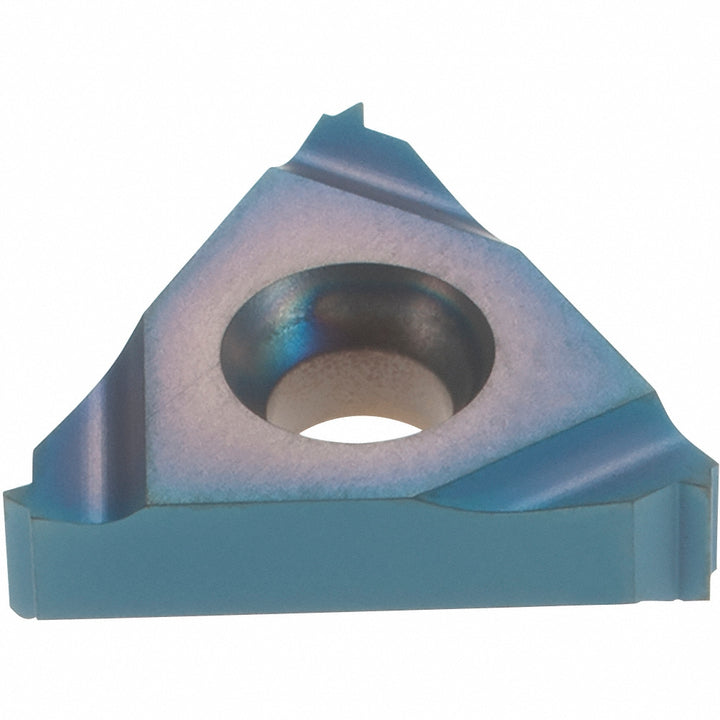

16 ER 28 UN Carbide Insert, Grade BLU - Carmex 20403678
MFR# 20403678ISO/ANSI# 16 ER 28 UNCat# 16 ER 28 UNSeries 16ER
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeBLU
MaterialCarbide
Description
The Carmex 20403678 is a 16 ER 28 UN carbide indexable insert, grade BLU. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Coating processPVD
Cutting edge to theoretical edge length0.0200
Face of insert to tip centerline0.0300
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Iso code16 ER 28 UN
Manufacturers catalog number16 ER 28 UN
Manufacturer gradeBLU
Number of teeth per side1
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Threads per inch28
Thread standardUN
Thread typeExternal
