Carmex

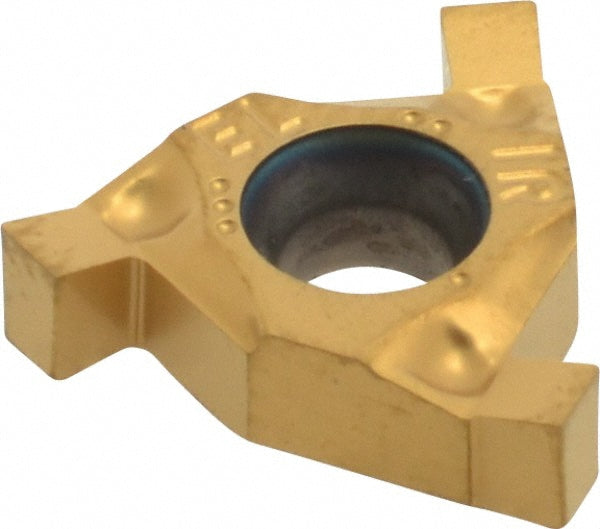

3/8" IC Carbide Insert, Grade BXC, TiN - Carmex 20800013
MFR# 20800013Series 16
$24.86List $25.91
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeBXC
MaterialCarbide
CoatingTiN
Description
The Carmex 20800013 is a carbide indexable insert, grade BXC, TiN coated. Suited for cast iron, steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0040
Cutting width0.089
External relief angle10
Full radiusNo
Inscribed circle in3/8
Insert handLeft Hand; Right Hand
Insert materialCarbide
Insert size0.089
Insert size code0089
Insert style16IR/EL
Internal relief angle15
Manufacturer gradeBXC
Material gradeC6
Maximum depth of cut0.0890
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle15
StandardsISO
