Carmex
1/2" IC Solid Carbide Insert, Grade MXC, Coated - Carmex 22ER5STACMEMXC
MFR# 22ER5STACMEMXC
$27.80List $35.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeMXC
MaterialSolid Carbide
CoatingCoated
Description

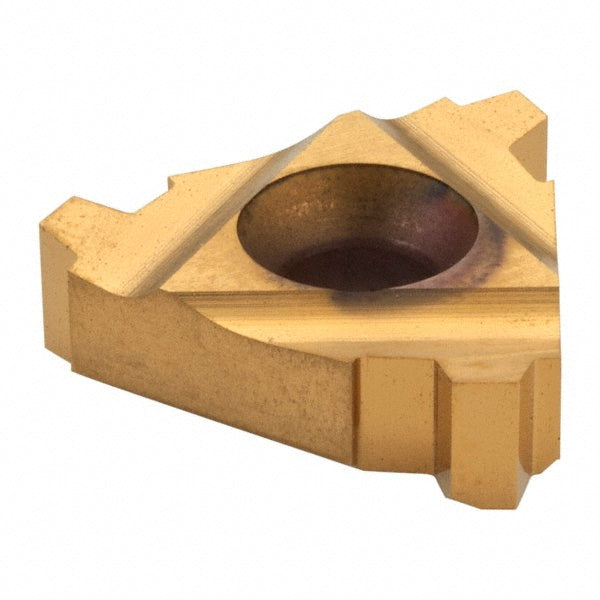

The Carmex 22ER5STACMEMXC is a solid carbide indexable insert, grade MXC, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Included angle29
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style22ER
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeMXC
Material gradeMicrograin
Primary workpiece materialUniversal
StandardsCE
Thickness0.1870
Threads per inch5
Thread standardStub Acme
Thread typeExternal
