Carmex

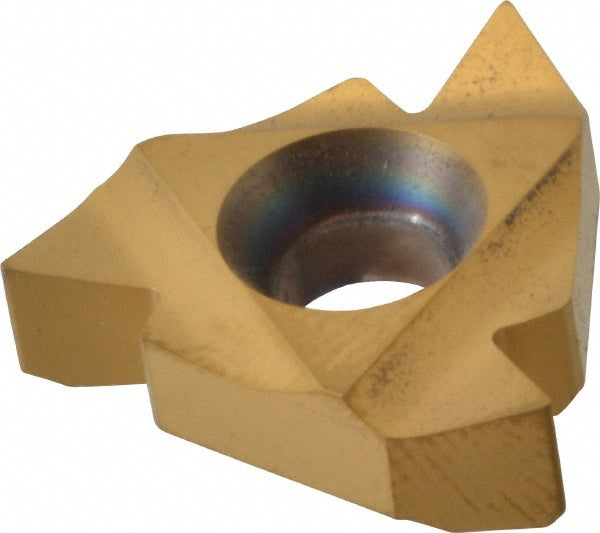

1/2" IC Solid Carbide Insert, Grade BXC, Coated - Carmex 22IRN60BXC
MFR# 22IRN60BXC
$28.62List $36.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeBXC
MaterialSolid Carbide
CoatingCoated
Description
The Carmex 22IRN60BXC is a solid carbide indexable insert, grade BXC, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style22IR
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeBXC
Pitch (mm)3.50 to 5.00
Primary workpiece materialUniversal
StandardsCE
Thickness0.1870
Threads per inch7-5
Thread typeInternal
