Carmex

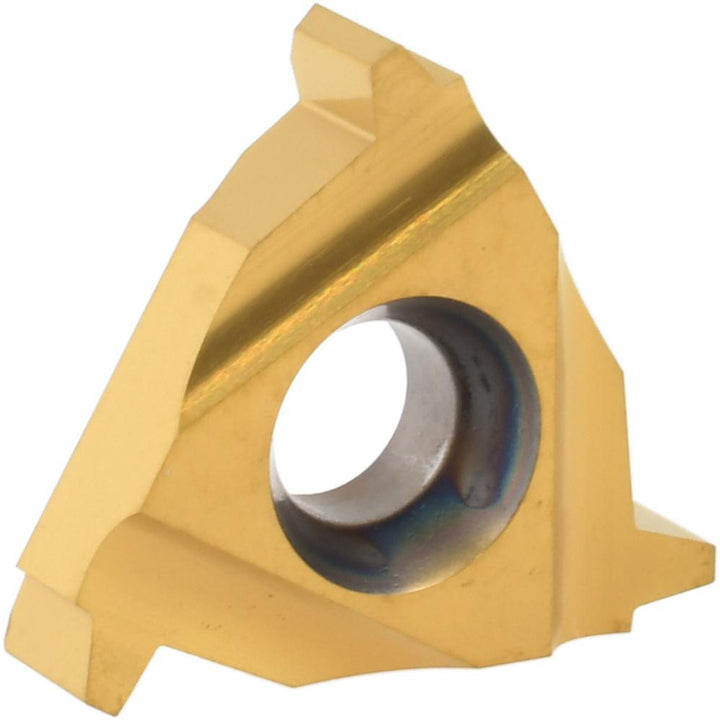

1/2" IC Carbide Insert, Grade BXC, TiN - Carmex 22UER4ACMEBXC
MFR# 22UER4ACMEBXC
$30.22List $38.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeBXC
MaterialCarbide
CoatingTiN
Description
The Carmex 22UER4ACMEBXC is a carbide indexable insert, grade BXC, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Coating processPVD
Included angle29
Inscribed circle in1/2
Insert handRight Hand
Insert materialCarbide
Insert size code22
Insert style22ER
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeBXC
Primary workpiece materialUniversal
StandardsCE
Thickness0.1870
Threads per inch4
Thread standardAcme
Thread typeExternal
