Carmex

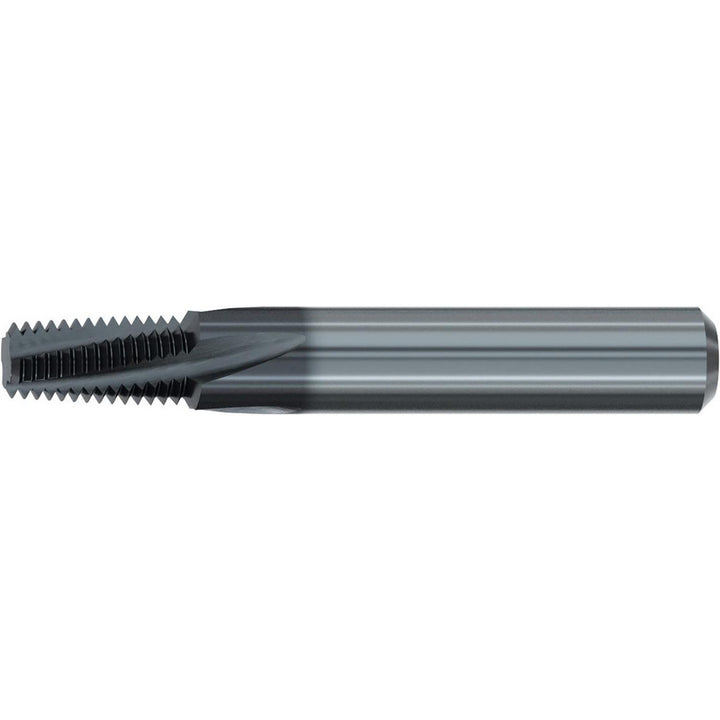

Helical Flute Thread Mills - Carmex B0500E1020UN
MFR# B0500E1020UN
$286.81List $367.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size3/4-20; 1-20
CoatingTiAlN
Description
The Carmex B0500E1020UN helical flute thread mills.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting diameter0.5000
Flute directionRight Hand
Length of cut1.0700
MaterialSolid Carbide
Material gradeMT7
Minimum nominal diameter in0.7500
Number of flutes5
Overall length4.0000
Shank length2.9300
Teeth per inch20
Thread size in3/4-20; 1-20
Thread standardUNEF
Thread typeInternal
