Carmex
Solid Carbide Insert, Grade MT7, TiAlN - Carmex C18C90MT7
MFR# C18C90MT7Series C18
$54.87List $70.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeMT7
MaterialSolid Carbide
CoatingTiAlN
Description

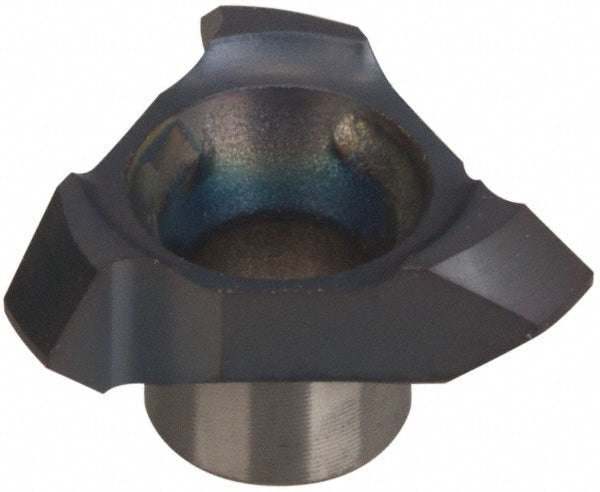

The Carmex C18C90MT7 is a solid carbide indexable insert, grade MT7, TiAlN coated. Suited for cast iron.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting width0.7000
Insert handRight Hand
Insert materialSolid Carbide
Insert size code18C90
Insert styleC18 C90
Manufacturer gradeMT7
Material gradeSubmicron
Maximum depth of cut0.0430
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Primary workpiece materialCast Iron
StandardsISO
