Carmex

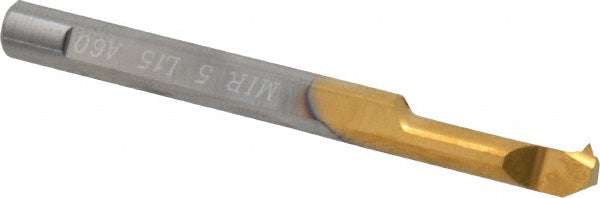

Single Point Threading Tools - Carmex MIR5L15A60
MFR# MIR5L15A60
$33.46List $42.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Carmex MIR5L15A60 single point threading tools.
Specifications
Coating finishTiN
Coolant throughYes
Cutting depth0.5900
MaterialSolid Carbide
Maximum pitch (mm)1.25
Maximum threads per inch24
Minimum pitch (mm)1.00
Minimum threads per inch20
Overall length in2
Profile angle60
Projection from center0.0800
Projection from edge0.0330
Shank diameter (mm)5.00
Threading diameter0.2000
Thread directionRight Hand
Thread typeInternal
