Carmex

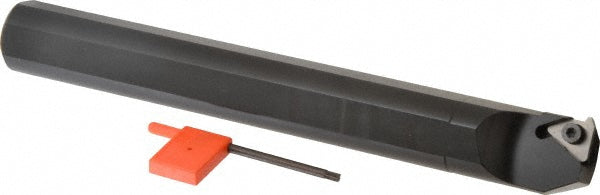

Indexable Threading Toolholders - Carmex SIR1250S22
MFR# SIR1250S22Series SIR
$210.33List $269.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Carmex SIR1250S22 indexable threading toolholders. Series SIR.
Specifications
Back of bar to cutting edge0.8500
Center to cutting edge0.8500
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Distance across flats1.1220
F in0.8500
Hand of holderRight Hand
Insert compatibility22IR
Insert holding methodScrew
Insert inscribed circle in1/2
Minimum bore diameter1.5000
Multi use toolNo
Neck diameter1.2500
Overall length in10
Shank height in1-1/4
Shank width diameter in1-1/4
StyleSIR 1250 S22
Thread typeInternal
Toolholder styleSI
