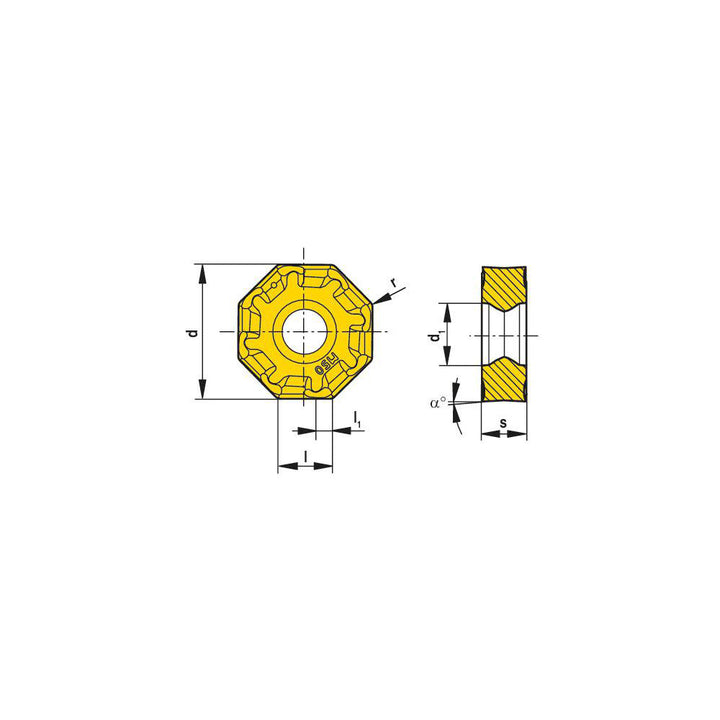

OAKU 060508ER-F40 CTC5240 Solid Carbide Insert, Grade CTC5240, TiN - Ceratizit 50446550
MFR# 50446550ISO/ANSI# OAKU 060508ER-F40 CTC5240Cat# OAKU 060508ER-F40 CTC5240Series OAKU
$50.00List $64.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeCTC5240
MaterialSolid Carbide
CoatingTiN
Description
The Ceratizit 50446550 is a OAKU 060508ER-F40 CTC5240 solid carbide indexable insert, grade CTC5240, TiN coated. Suited for superalloys & titanium.
Specifications
Ansi codeOAKU 060508ER-F40 CTC5240
Chip breakerF40
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility273
Cutting edge effective length0.2362
Cutting edge styleHoned
Hole diameter0.2283
Included angle degree135
Inscribed circle0.6732
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060508
Insert styleOAKU
Iso codeOAKU 060508ER-F40 CTC5240
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog numberOAKU 060508ER-F40 CTC5240
Manufacturer gradeCTC5240
Material applicationSuperalloys & Titanium
Material gradeS40
Maximum depth of cut0.1004
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle3.00
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width in1
