Ceratizit

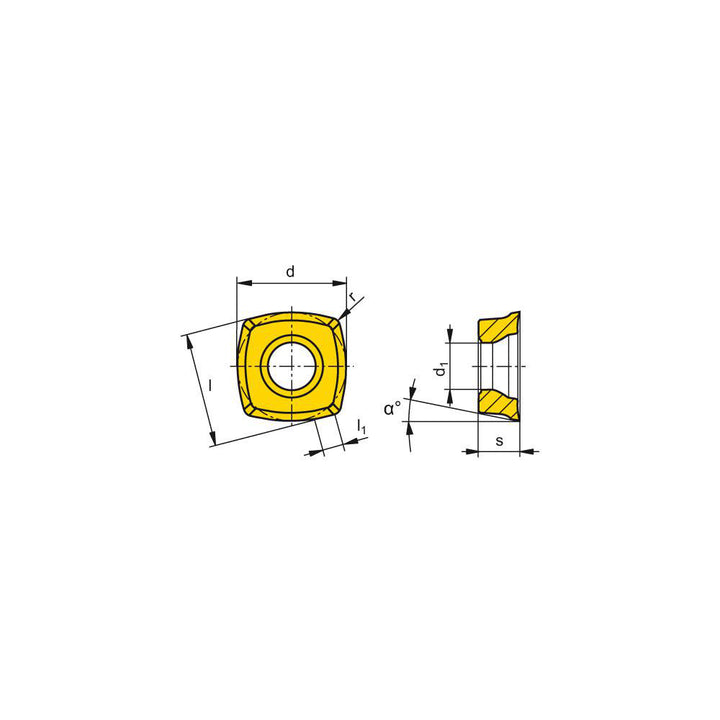

XDLX 09T308ER-F40 CTC5240 Solid Carbide Insert, Grade CTC5240, TiN - Ceratizit 50503558
MFR# 50503558ISO/ANSI# XDLX 09T308ER-F40 CTC5240Cat# XDLX 09T308ER-F40 CTC5240Series XDLX
$25.02List $32.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeCTC5240
MaterialSolid Carbide
CoatingTiN
Description
The Ceratizit 50503558 is a XDLX 09T308ER-F40 CTC5240 solid carbide indexable insert, grade CTC5240, TiN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXDLX 09T308ER-F40 CTC5240
Chip breakerF40
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityHFC
Cutting edge effective length0.3543
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleXDLX
Iso codeXDLX 09T308ER-F40 CTC5240
Length0.3543
Length range0.3200 to 0.4000
Manufacturers catalog numberXDLX 09T308ER-F40 CTC5240
Manufacturer gradeCTC5240
Material applicationSuperalloys & Titanium
Material gradeS40
Maximum depth of cut0.1669
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle15.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
