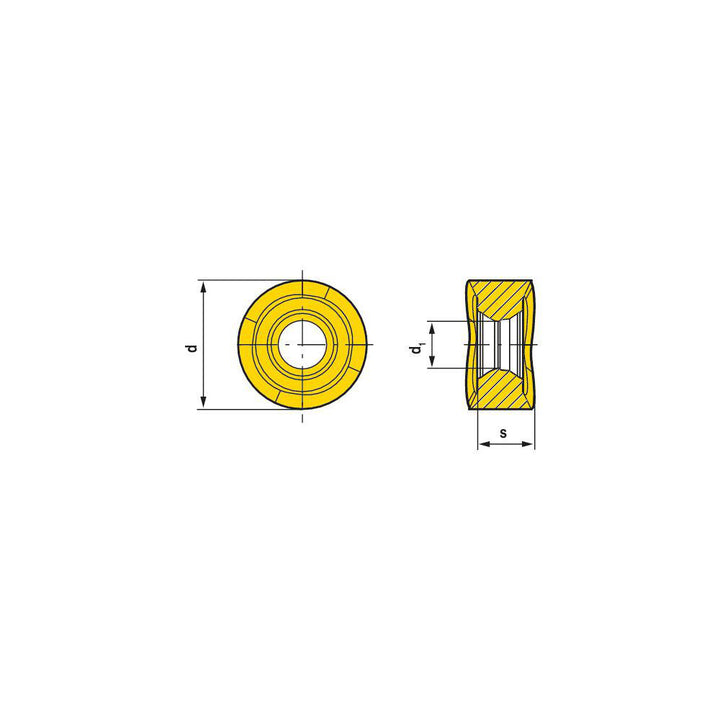

RNHU 1205M4ER-M31 CTC5240 Solid Carbide Insert, Grade CTC5240, TiN - Ceratizit 50521552
MFR# 50521552ISO/ANSI# RNHU 1205M4ER-M31 CTC5240Cat# RNHU 1205M4ER-M31 CTC5240Series RNHU
$27.80List $35.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeCTC5240
MaterialSolid Carbide
CoatingTiN
Description
The Ceratizit 50521552 is a RNHU 1205M4ER-M31 CTC5240 solid carbide indexable insert, grade CTC5240, TiN coated. Suited for superalloys & titanium.
Specifications
Ansi codeRNHU 1205M4ER-M31 CTC5240
Chip breakerM31
Coating finishTiN
Coating processCVD
Corner radius0.2362
Cutter series compatibilityA252
Cutting edge effective length0.2362
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1205
Insert styleRNHU
Iso codeRNHU 1205M4ER-M31 CTC5240
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog numberRNHU 1205M4ER-M31 CTC5240
Manufacturer gradeCTC5240
Material applicationSuperalloys & Titanium
Material gradeS40
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0.00
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2087
Thickness range0.2000 to 0.2200
Width0.4724
