Ceratizit

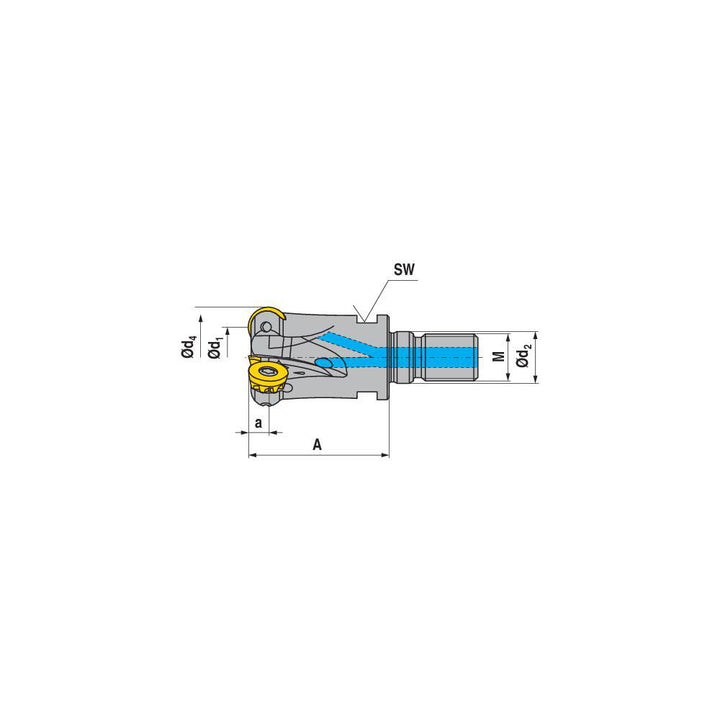

Indexable End Mills - Ceratizit 50684032
MFR# 50684032Series G251-10-RS
$432.39List $554.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Ceratizit 50684032 indexable end mills. Suited for universal. Series G251-10-RS.
Specifications
Compatible insert size codeRP.X 10T3..
Compatible insert styleRP.X
Coolant throughYes
Functional length (mm)35.00
Head length (mm)35.00
Insert diameter (mm)10.00
Insert holding methodScrew
Maximum cutting diameter (mm)32.00
Maximum depth of cut (mm)5.00
Maximum ramping angle3.0
Maximum rpm25000
Minimum cutting diameter (mm)22.00
Modular connection sizeM16
Number of cutter inserts4
Number of flutes4
Overall length1.3800
Primary workpiece materialUniversal
Shank diameter17.0000
Shank diameter (mm)17.00
Shank typeModular Connection
Toolholder materialSteel
Toolholder styleG251
Tool applicationMilling; Ramping
Tool performanceGeneral Purpose
