Ceratizit

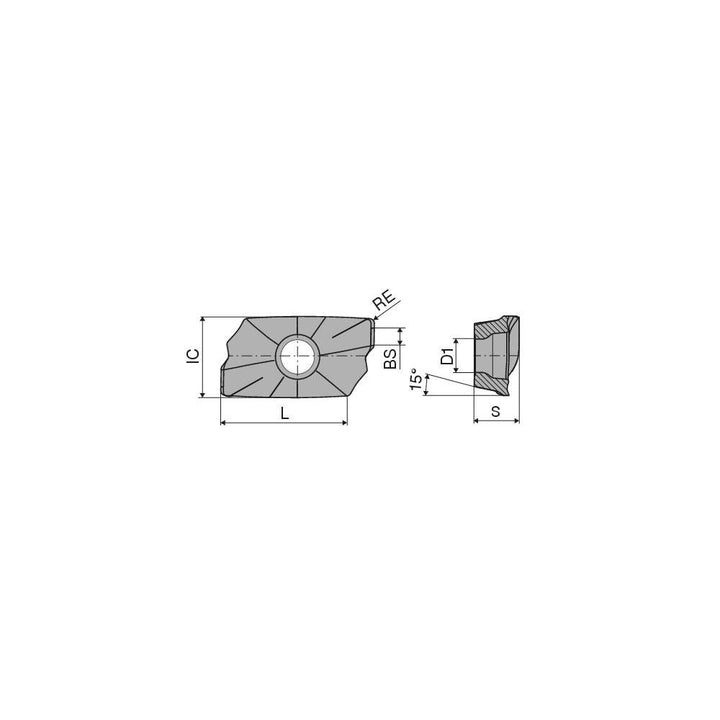

XDKT 11T308SR-M50 CTPP235 Solid Carbide Insert, Grade CTPP235, TiAl - Ceratizit 51037108
MFR# 51037108ISO/ANSI# XDKT 11T308SR-M50 CTPP235Cat# XDKT 11T308SR-M50 CTPP235Series XDKT
$15.85List $20.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeCTPP235
MaterialSolid Carbide
CoatingTiAl
Description
The Ceratizit 51037108 is a XDKT 11T308SR-M50 CTPP235 solid carbide indexable insert, grade CTPP235, TiAl coated. Suited for steel.
Specifications
Ansi codeXDKT 11T308SR-M50 CTPP235
Chip breakerM50
Coating finishTiAl
Coating processPVD
Corner radius in1/32
Cutter series compatibility211-11
Cutting edge effective length0.4173
Cutting edge styleChamfered; Honed
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleXDKT
Iso codeXDKT 11T308SR-M50 CTPP235
Length0.4173
Length range0.4000 to 0.4500
Manufacturers catalog numberXDKT 11T308SR-M50 CTPP235
Manufacturer gradeCTPP235
Material applicationSteel
Material gradeP35; M30
Maximum depth of cut0.2835
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.2677
