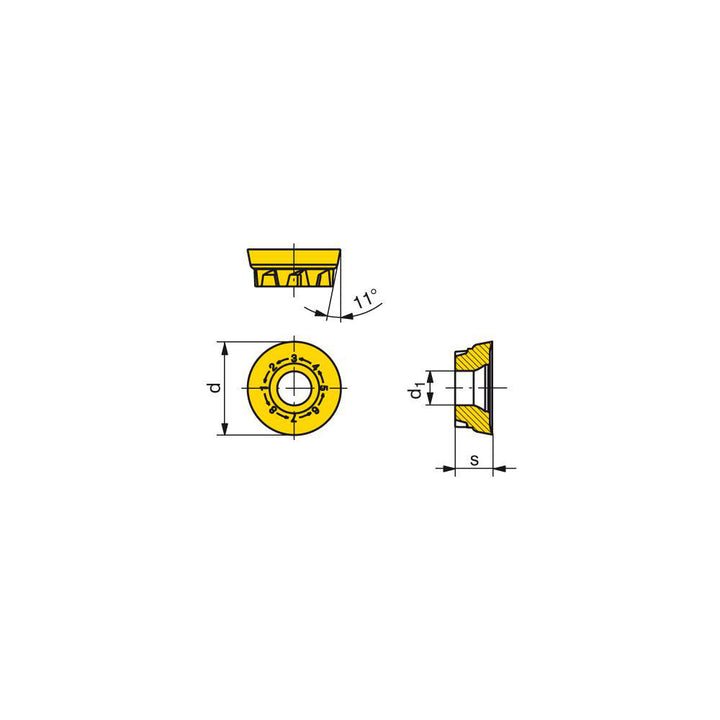

RPHX 1204M8SN-M50 CTPM240 Solid Carbide Insert, Grade CTPM240, TiAl - Ceratizit 51050425
MFR# 51050425ISO/ANSI# RPHX 1204M8SN-M50 CTPM240Cat# RPHX 1204M8SN-M50 CTPM240Series RPHX
$21.24List $26.77
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeCTPM240
MaterialSolid Carbide
CoatingTiAl
Description
The Ceratizit 51050425 is a RPHX 1204M8SN-M50 CTPM240 solid carbide indexable insert, grade CTPM240, TiAl coated. Suited for stainless steel.
Specifications
Ansi codeRPHX 1204M8SN-M50 CTPM240
Chip breakerM50
Coating finishTiAl
Coating processPVD
Corner radius0.2362
Cutter series compatibility251
Cutting edge effective length0.2362
Cutting edge styleChamfered; Honed
Hole diameter0.1732
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHX
Iso codeRPHX 1204M8SN-M50 CTPM240
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog numberRPHX 1204M8SN-M50 CTPM240
Manufacturer gradeCTPM240
Material applicationStainless Steel
Material gradeM40; P40
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle11.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
