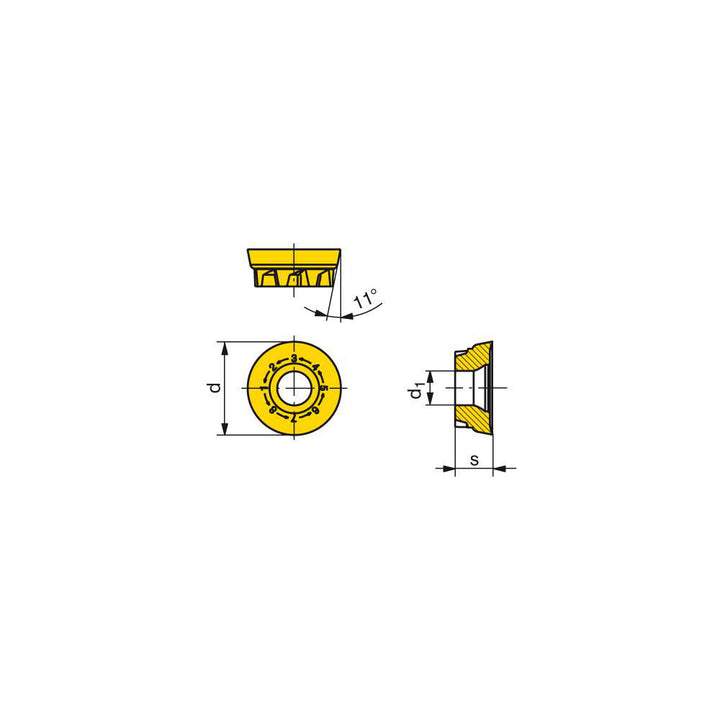

RPHX 1204M4SN-F50 CTCM245 Solid Carbide Insert, Grade CTCM245, TiCN - Ceratizit 5105192501
MFR# 5105192501ISO/ANSI# RPHX 1204M4SN-F50 CTCM245Cat# RPHX 1204M4SN-F50 CTCM245Series RPHX
$27.03List $34.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeCTCM245
MaterialSolid Carbide
CoatingTiCN
Description
The Ceratizit 5105192501 is a RPHX 1204M4SN-F50 CTCM245 solid carbide indexable insert, grade CTCM245, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeRPHX 1204M4SN-F50 CTCM245
Chip breakerF50
Coating finishTiCN
Coating processCVD
Corner radius0.2362
Cutter series compatibility251
Cutting edge effective length0.2362
Cutting edge styleChamfered; Honed
Hole diameter0.1732
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHX
Iso codeRPHX 1204M4SN-F50 CTCM245
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog numberRPHX 1204M4SN-F50 CTCM245
Manufacturer gradeCTCM245
Material applicationSteel; Stainless Steel
Material gradeP45; M50; S35
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
