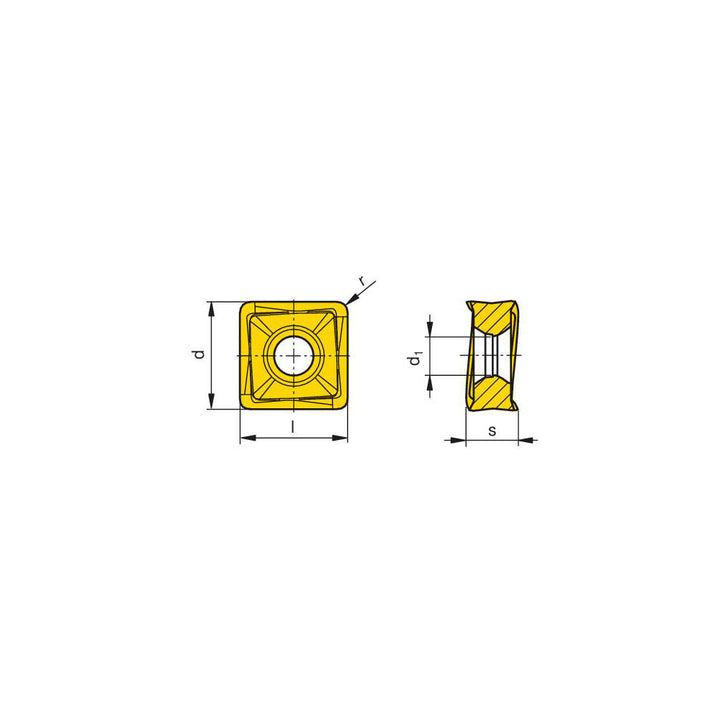

SNHU 120408SR-M50 CTPP235 Solid Carbide Insert, Grade CTPP235, TiAl - Ceratizit 51100108

Ceratizit

SNHU 120408SR-M50 CTPP235 Solid Carbide Insert, Grade CTPP235, TiAl - Ceratizit 51100108

MFR# 51100108ISO/ANSI# SNHU 120408SR-M50 CTPP235Cat# SNHU 120408SR-M50 CTPP235Series SNHU

$30.23List $38.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeCTPP235
MaterialSolid Carbide
CoatingTiAl

Description

The Ceratizit 51100108 is a SNHU 120408SR-M50 CTPP235 solid carbide indexable insert, grade CTPP235, TiAl coated. Suited for steel.

Specifications

Ansi codeSNHU 120408SR-M50 CTPP235
Chip breakerM50
Coating finishTiAl
Coating processPVD
Corner radius in1/32
Cutter series compatibility491-12
Cutting edge effective length0.4803
Cutting edge styleChamfered; Honed
Hole diameter0.1732
Included angle degree90
Inscribed circle0.4803
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120408
Insert styleSNHU
Iso codeSNHU 120408SR-M50 CTPP235
Length0.4803
Length range0.4500 to 0.5000
Manufacturers catalog numberSNHU 120408SR-M50 CTPP235
Manufacturer gradeCTPP235
Material applicationSteel
Material gradeP35; M30
Maximum depth of cut0.2402
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle6.50
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.4803
