Ceratizit

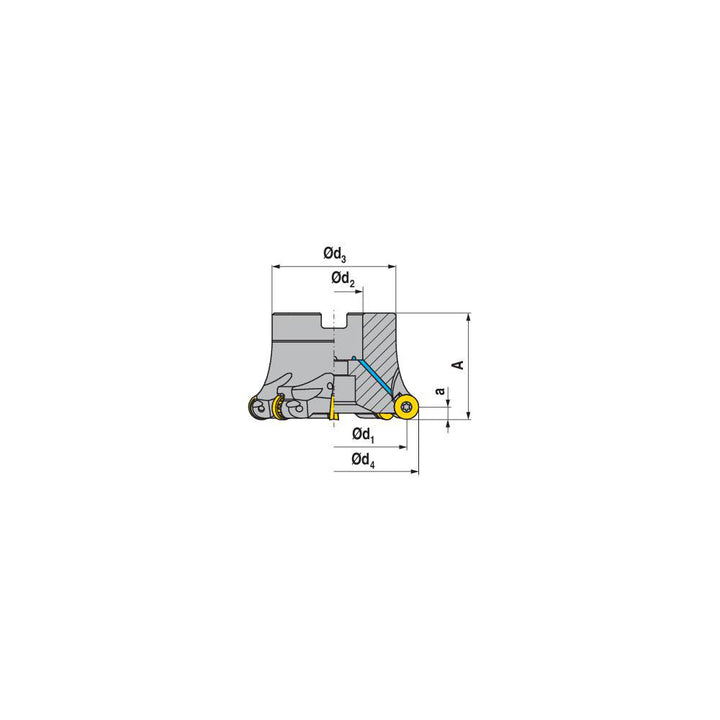

Indexable Milling Cutters - Ceratizit 5868620205
MFR# 5868620205Series A251-12
$529.36List $678.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Ceratizit 5868620205 indexable milling cutters. Suited for universal. Series A251-12.
Specifications
Arbor hole diameter (mm)0.75
Compatible insert size codeRP.X 1204..
Coolant throughYes
Cutter styleA251
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodClamp; Screw
Maximum cutting diameter2.0000
Maximum depth of cut0.2360
Maximum ramping angle2.60
Maximum rpm12700
Minimum cutting diameter1.5280
Number of cutter inserts5
Overall height in1-3/4
Primary workpiece materialUniversal
Tool applicationFace Milling
Tool performanceGeneral Purpose
