Ceratizit

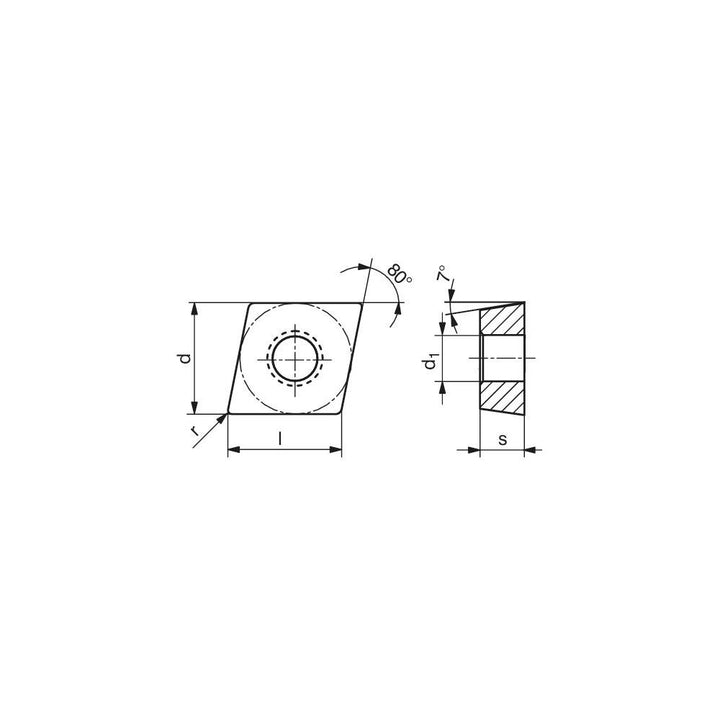

CCGT 120404FN-25P H210T Carbide Insert, Grade H210T - Ceratizit 70248642
MFR# 70248642ISO/ANSI# CCGT 120404FN-25P H210TSeries CCGT
$15.30List $19.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH210T
MaterialCarbide
Description
The Ceratizit 70248642 is a CCGT 120404FN-25P H210T carbide indexable insert, grade H210T. Suited for non-ferrous metal, superalloy, titanium.
Specifications
Chip breaker25P
Clearance codeC
Coating processUncoated
Corner radius0.0157
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCGT
Insert thickness0.1874
Iso codeCCGT 120404FN-25P H210T
Manufacturer gradeH210T
Maximum depth of cut0.5079
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloy; Titanium
RakePositive
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeG
Wiper edgeNo
