CNMG 120408EN-M34 CTPX710 Carbide Insert, Grade CTPX710, AlTiN - Ceratizit 7500363000

Ceratizit

CNMG 120408EN-M34 CTPX710 Carbide Insert, Grade CTPX710, AlTiN - Ceratizit 7500363000

MFR# 7500363000ISO/ANSI# CNMG120408Series CNMG

$14.93List $19.14 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeCTPX710
MaterialCarbide
CoatingAlTiN

Description

The Ceratizit 7500363000 is a CNMG 120408EN-M34 CTPX710 carbide indexable insert, grade CTPX710, AlTiN coated. Suited for steel, stainless steel, superalloy, titanium.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerM34
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide

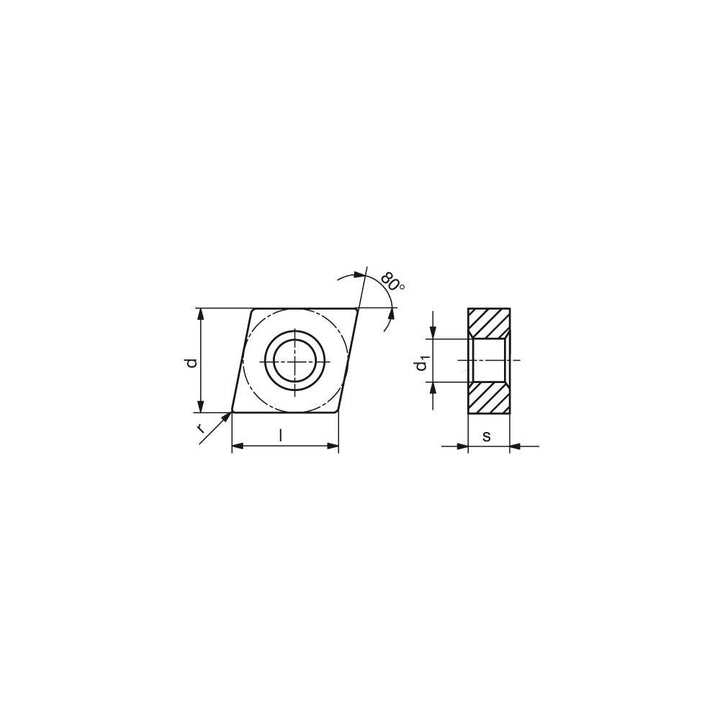

Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness0.1874
Iso codeCNMG 120408EN-M34 CTPX710
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeCTPX710
Maximum depth of cut0.5079
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Secondary workpiece materialNon-Ferrous Metal
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
