Chicago-Latrobe

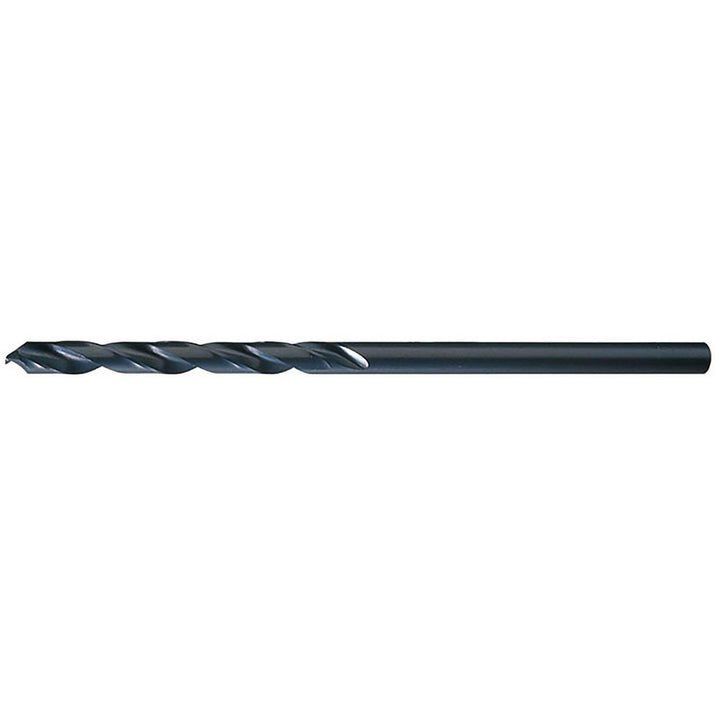

7/32" High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 11011
MFR# 11011Series 906
$4.36List $5.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 11011 is a 7/32" High Speed Steel drill bit with a Oxide finish, 135° point. 2-1/2 flute length, 6 overall length. Series 906.
Specifications
Coating finishOxide
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit size in7/32
Drill point angle degrees135
Flute length in2-1/2
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Self centeringYes
Shank diameter in7/32
Shank typeStraight-Cylindrical
StandardsNAS 907 Type B
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
