Chicago-Latrobe

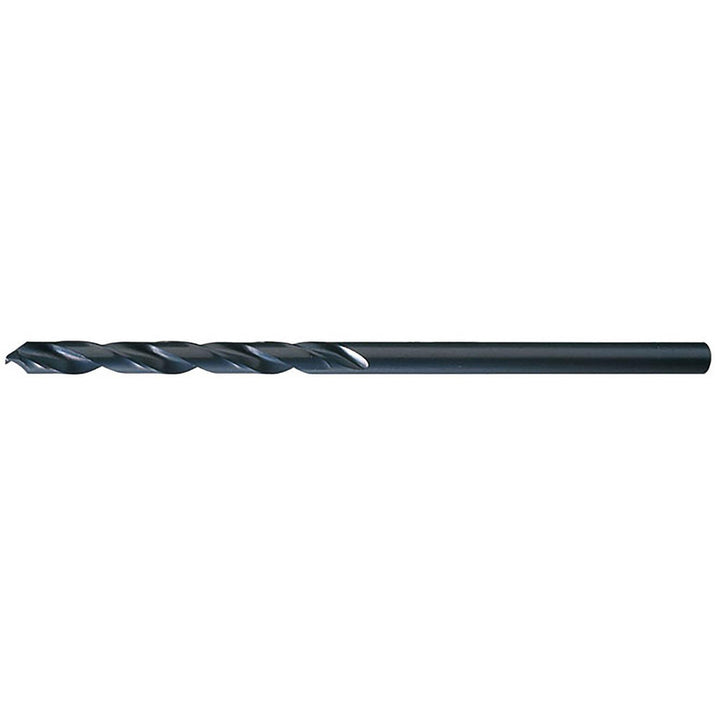

5/16" High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 11018
MFR# 11018Series 906
$15.02List $17.97
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 11018 is a 5/16" High Speed Steel drill bit with a Oxide finish, 135° point. 3-3/16 flute length, 6 overall length. Series 906.
Specifications
Coating finishOxide
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in5/16
Drill point angle degrees135
Flute length in3-3/16
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Self centeringYes
Shank diameter in5/16
Shank typeStraight-Cylindrical
StandardsNAS 907 Type B
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
