Chicago-Latrobe

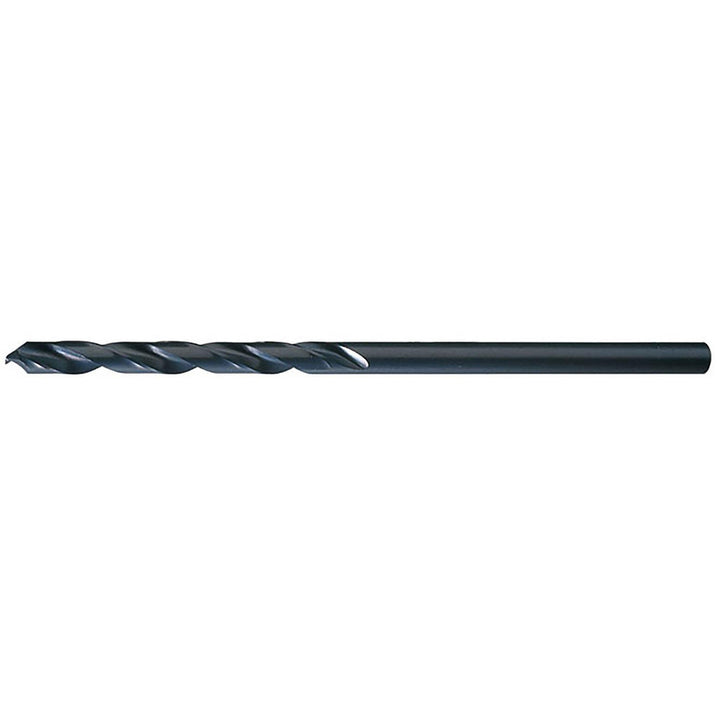

3/8" High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 11022
MFR# 11022Series 906
$17.35List $22.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 11022 is a 3/8" High Speed Steel drill bit with a Oxide finish, 135° point. 3-5/8 flute length, 6 overall length. Series 906.
Specifications
Coating finishOxide
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in3/8
Drill point angle degrees135
Flute length in3-5/8
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Self centeringYes
Shank diameter in3/8
Shank typeStraight-Cylindrical
StandardsNAS 907 Type B
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
