Chicago-Latrobe

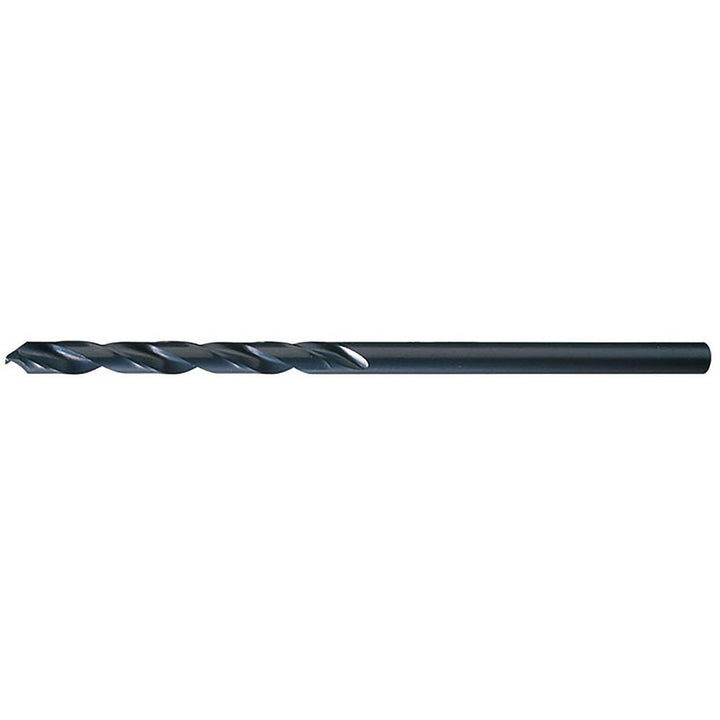

#4 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 11034
MFR# 11034Series 906
$5.32List $6.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 11034 is a #4 High Speed Steel drill bit with a Oxide finish, 135° point. 2-1/2 flute length, 6 overall length. Series 906.
Specifications
Coating finishOxide
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit size0.2090
Drill bit size wire#4
Drill point angle degrees135
Flute length in2-1/2
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Self centeringYes
Shank diameter0.2090
Shank typeStraight-Cylindrical
StandardsNAS 907 Type B
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
