Chicago-Latrobe

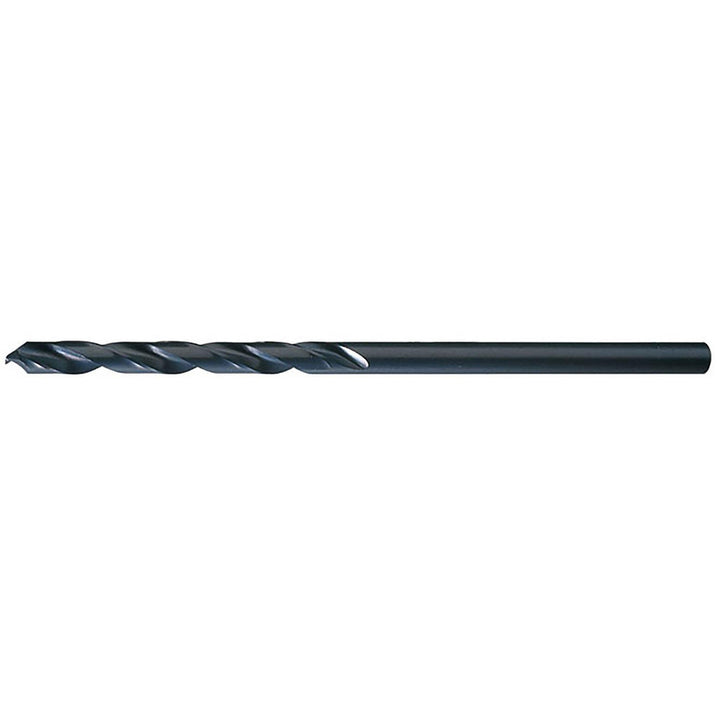

#57 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 11087
MFR# 11087Series 906
$7.98List $10.23
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 11087 is a #57 High Speed Steel drill bit with a Oxide finish, 135° point. 3/4 flute length, 6 overall length. Series 906.
Specifications
Coating finishOxide
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.0430
Drill bit size wire#57
Drill point angle degrees135
Flute length in3/4
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeStandard
Self centeringNo
Shank diameter0.0430
Shank typeStraight-Cylindrical
StandardsNAS 907 Type B
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
