Chicago-Latrobe

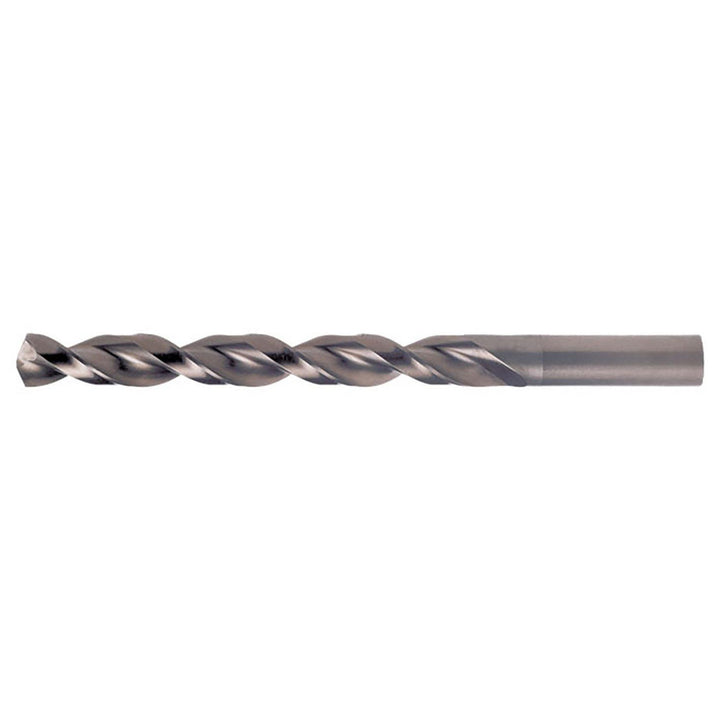

1/16" High Speed Steel Drill Bit, 135° point - Chicago-Latrobe 41004
MFR# 41004Series 150WLP
$3.20List $4.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
Description
The Chicago-Latrobe 41004 is a 1/16" High Speed Steel drill bit, 135° point. Suited for steel. 7/8 flute length, 1-7/8 overall length. Series 150WLP.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute length in7/8
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in1-7/8
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.0625
Shank length1.0000
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
