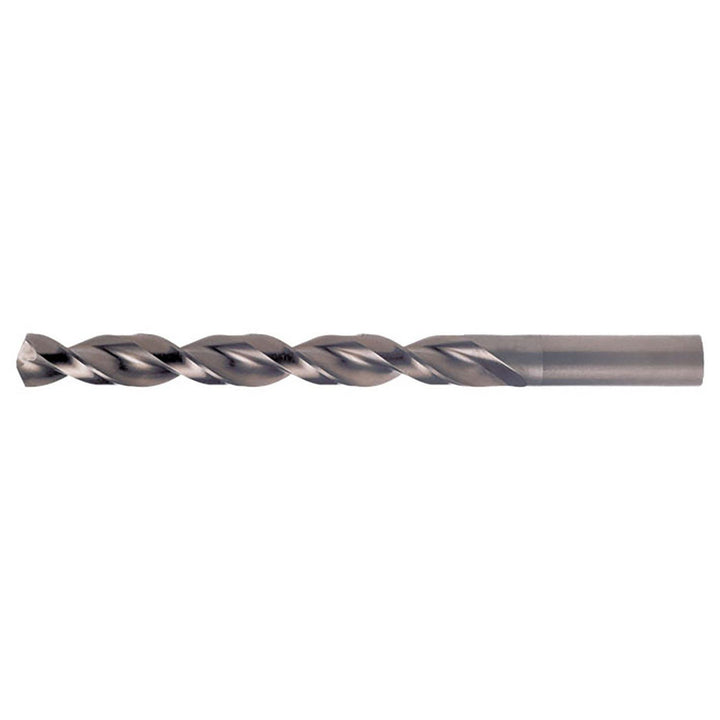

3/32" High Speed Steel Drill Bit, 135° point - Chicago-Latrobe 41006

Chicago-Latrobe

3/32" High Speed Steel Drill Bit, 135° point - Chicago-Latrobe 41006

MFR# 41006Series 150WLP

$3.56List $4.56 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
Flutes2

Description

The Chicago-Latrobe 41006 is a 3/32" High Speed Steel drill bit, 135° point. Suited for steel. 1-1/4 flute length, 2-1/4 overall length. Series 150WLP.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute length in1-1/4
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in2-1/4
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.0938
Shank length1.0000
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
