Chicago-Latrobe

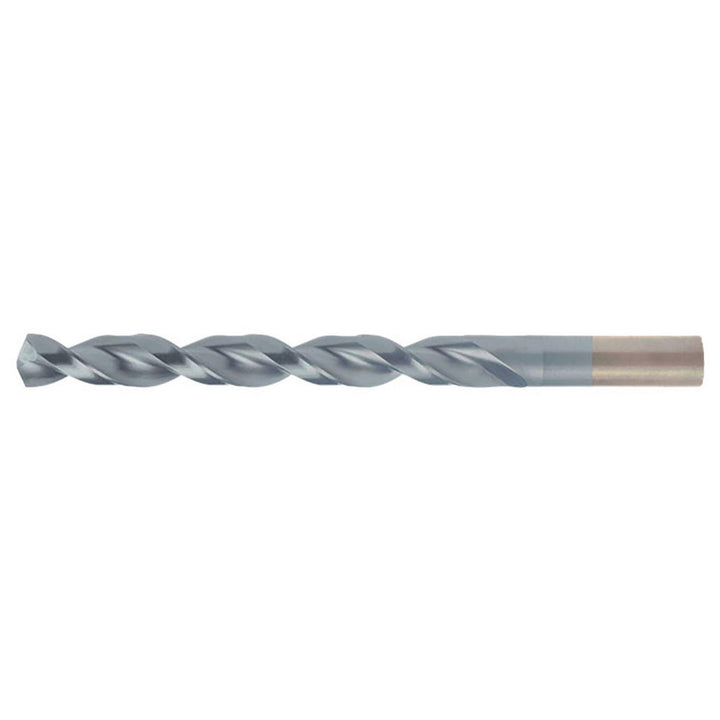

1/8" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42008
MFR# Chicago-Latrobe-42008Series 150WLPN
$7.57List $9.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiCN
Description
The Chicago-Latrobe 42008 is a 1/8" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 1-5/8 flute length, 2-3/4 overall length. Series 150WLPN.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-5/8
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in2-3/4
Point typeNotched
Primary workpiece materialSteel
Shank diameter in1/8
Shank length1.1250
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
