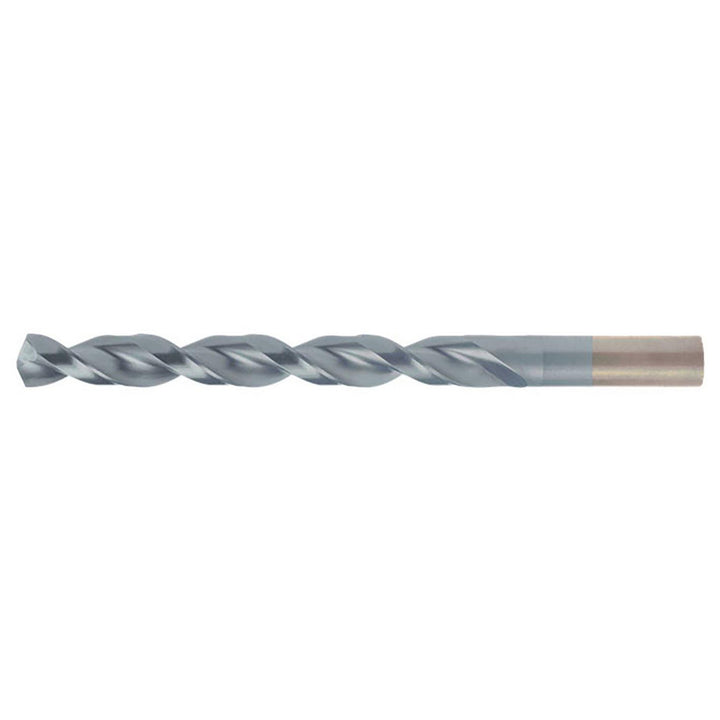

9/64" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42009

Chicago-Latrobe

9/64" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42009

MFR# Chicago-Latrobe-42009Series 150WLPN

$7.99List $10.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTiCN

Description

The Chicago-Latrobe 42009 is a 9/64" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 1-3/4 flute length, 2-7/8 overall length. Series 150WLPN.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-3/4
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in2-7/8
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.1406
Shank length1.1250
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
