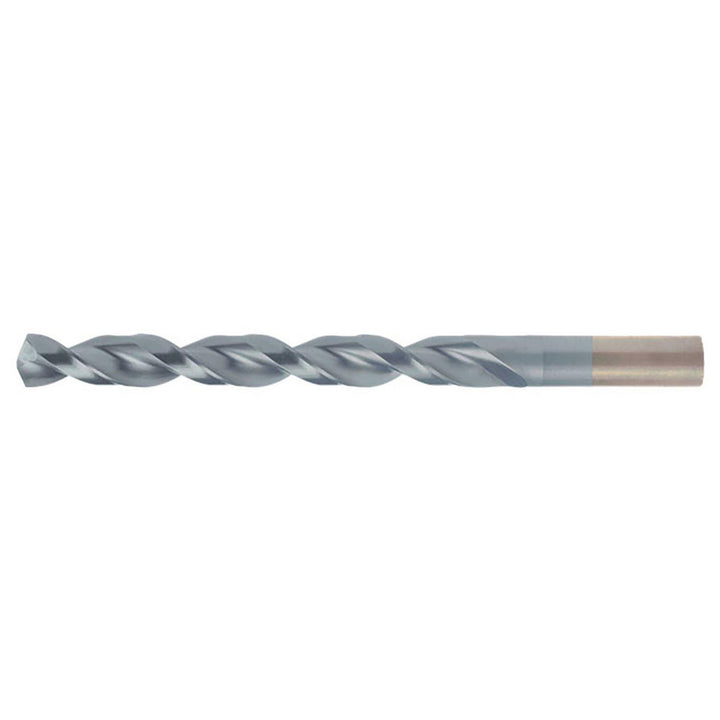

5/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42010

Chicago-Latrobe

5/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42010

MFR# 42010Series 150WLPN

$7.21List $9.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/32
Flutes2
CoatingTiCN

Description

The Chicago-Latrobe 42010 is a 5/32" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 2 flute length, 3-1/8 overall length. Series 150WLPN.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in3-1/8
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.1562
Shank length1.1250
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
